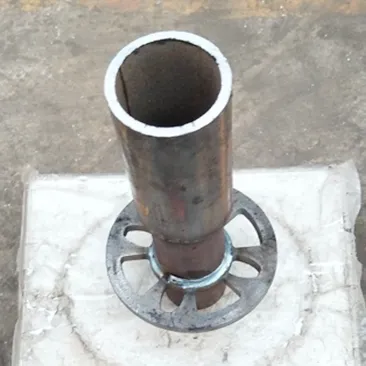

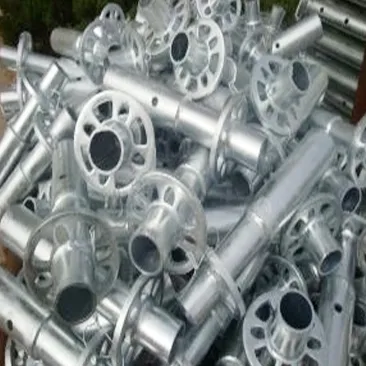

Base Collar

A Base Collar in construction typically refers to a component used in Formwork Systems, especially for columns and similar structural elements.

Installation and Use

1.During the construction process of a concrete column, the base collar is typically installed as follows:

2.Preparation: The column reinforcement is set up according to design specifications.

3.Formwork Assembly: The base collar is placed at the bottom of the formwork assembly, ensuring it is securely attached and aligned with the column formwork.

4.Concrete Pouring: Once the formwork and base collar are in place and checked for alignment, concrete is poured into the mold.

5.Curing and Dismantling: After the concrete has cured to gain sufficient strength, the formwork and base collar are carefully dismantled. The base collar can be cleaned and reused for subsequent column pours.

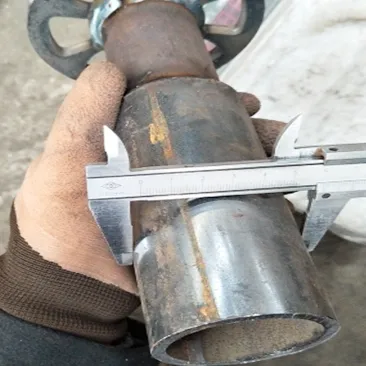

Base collar:235/290/300/330mm
